Autonomous robots and materials handling equipment
We automate transport, storage and handling — from moving cartons and pallets to high-bay storage.

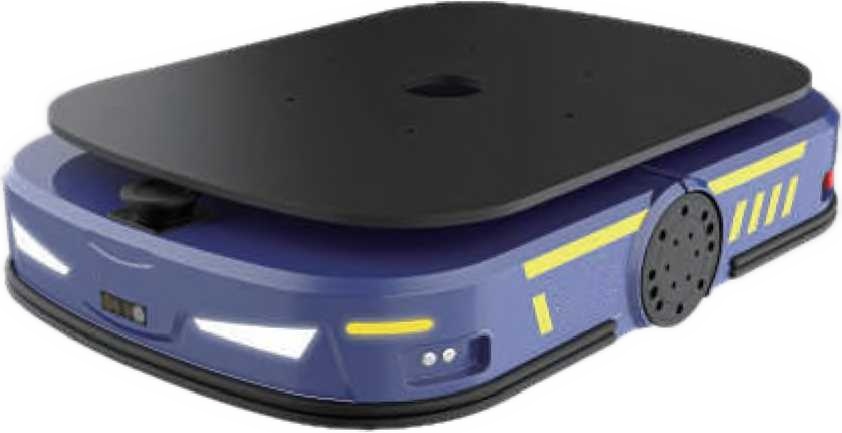

Lift-and-rotate AMR
Drives under a rack or trolley, lifts the load by 60 mm and turns on the spot. Fits through low and narrow areas.
| Rated capacity | 500 / 1000 / 1500 kg |
| Lift height | 60 ± 5 mm |
| Travel speed | up to 1.5 m/s |
| Turning diameter | 1151–1298 mm |
| Gradeability | 5 % / 10 % |

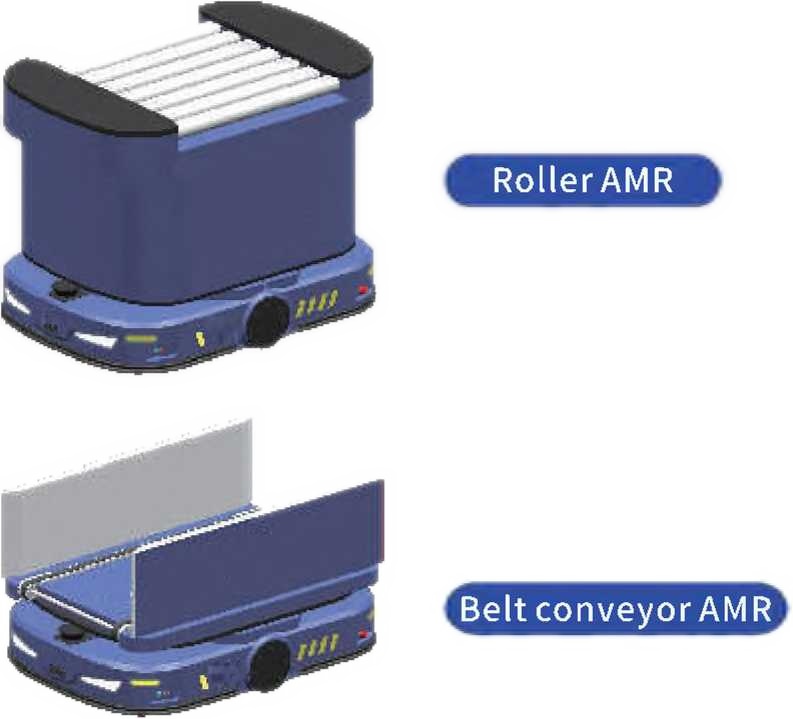

Roller / belt AMR
Chassis with an on-board conveyor: automatic load transfer to a machine, roller table or vertical lift module with no manual handling.
| Top module | rollers, belt, robotic arm |
| Docking accuracy | ± 2 mm |
| Localisation | SLAM, QR code, reflector |
| Duty cycle | round the clock |

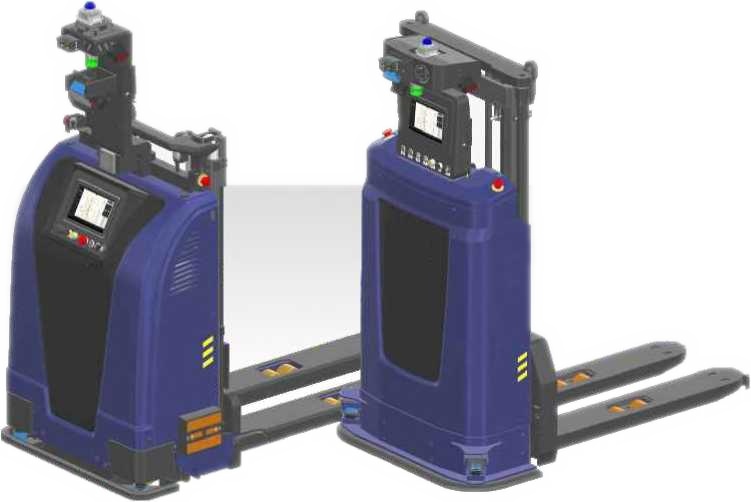

Compact stacker
Small-footprint chassis with forks for narrow aisles. Runs 6–8 hours on a single charge.
| Rated capacity | 500 / 1000 / 1500 kg |
| Dimensions | from 850×580×306 mm |
| Runtime | 6–8 h |
| Positioning accuracy | ± 10 mm |
| Weight | 175–225 kg |

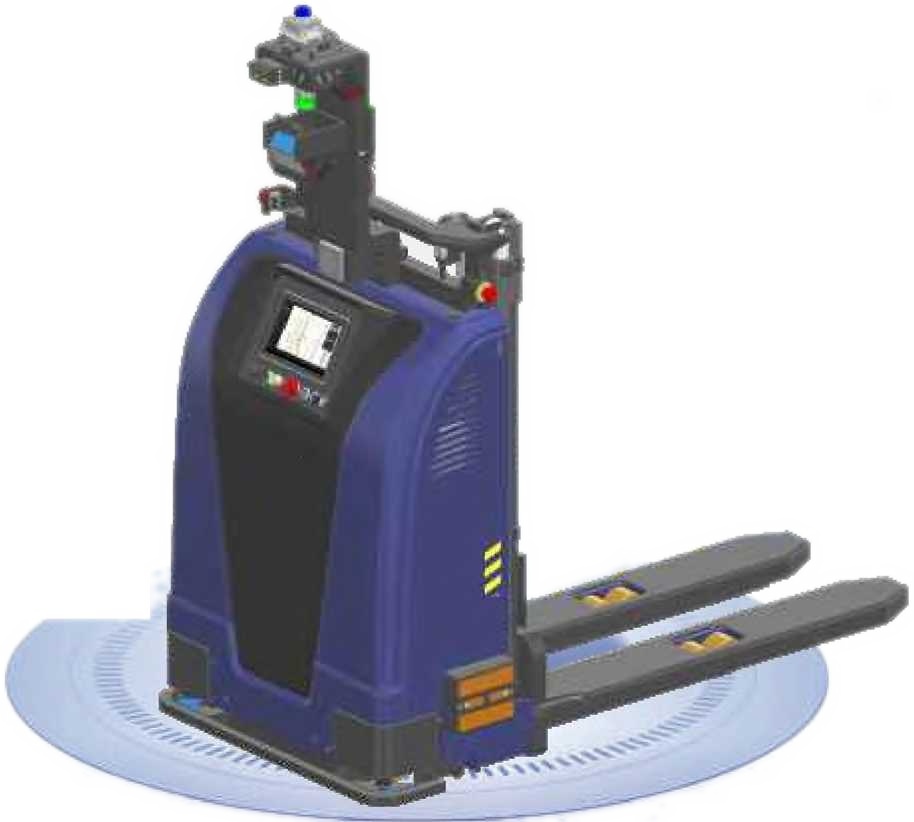

SL series stacker
Vertical stacking up to 3 metres. Makes full use of building height and handles heavy pallets.
| Rated capacity | 1200 – 2000 kg |
| Lift height | 1844 – 3000 mm |
| Travel speed | 1.3 – 2.0 m/s |
| Drive | single steered drive wheel |
| Gradeability | 5 % |

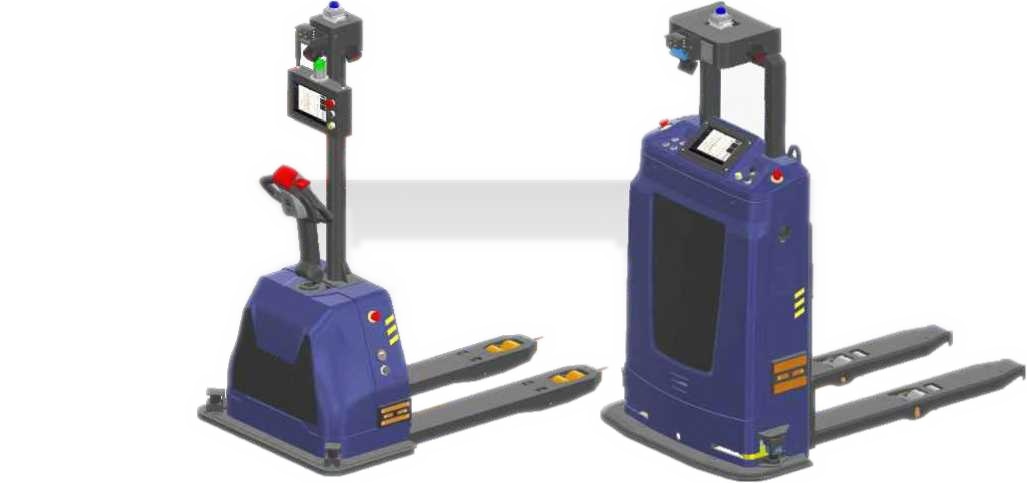

P series pallet truck
The workhorse of the warehouse: high-volume horizontal transport of loads up to 4 tonnes.
| Rated capacity | 1500 – 4000 kg |
| Lift height | 95 – 200 mm |
| Travel speed | 1.4 – 1.6 m/s |
| Turning diameter | 2400 – 3640 mm |
| Gradeability | 5 % / 10 % |

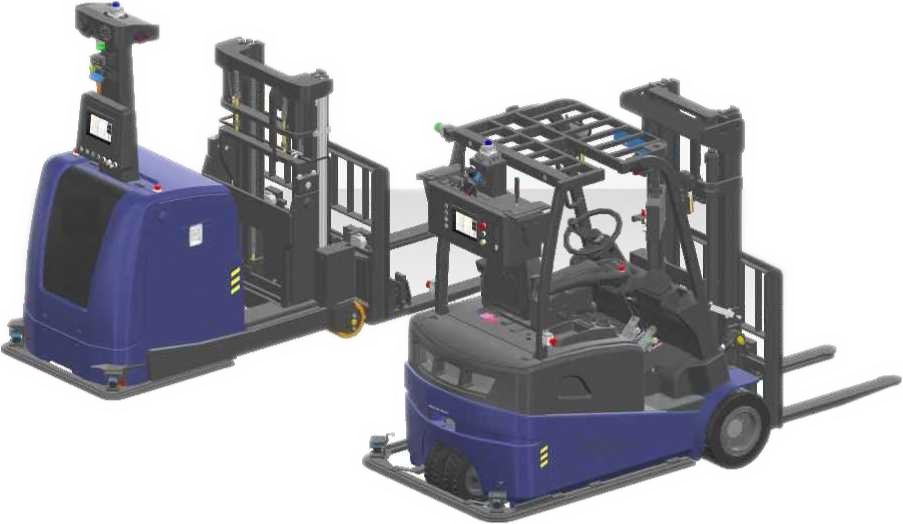

E series counterbalance forklift
For indoor and outdoor use. A high-capacity battery gives up to 8 hours of continuous operation, with travel over uneven surfaces.
| Rated capacity | 2000 – 3500 kg |
| Lift height | 3000 mm |
| Gradeability | 5 – 16 % |
| Positioning accuracy | ± 10 mm |
| Operation | up to 8 h, indoor and outdoor |

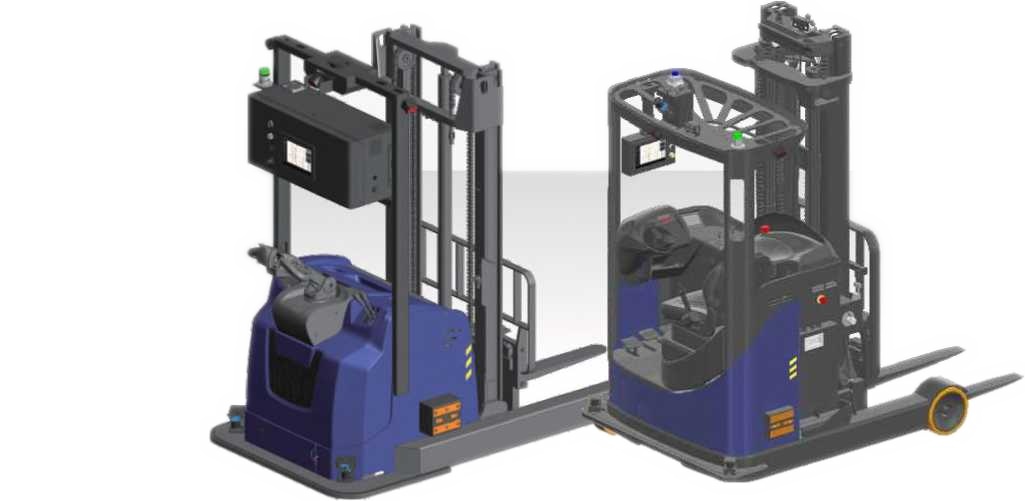

R series reach truck
High-bay storage in narrow aisles. Lift height up to 5.7 metres for work on upper rack levels.
| Rated capacity | 1500 – 2000 kg |
| Lift height | 2500 – 5755 mm |
| Travel speed | 1.4 – 2.0 m/s |
| Turning diameter | 3550 – 4104 mm |
| Gradeability | 5 % |

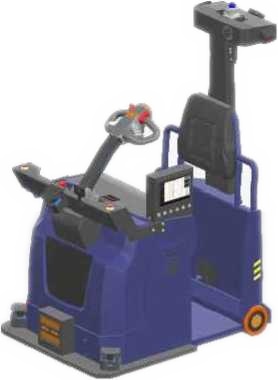

G series tow tractor
Tows up to 3 tonnes at 1.8 m/s. Speeds up internal logistics between warehouse and production areas.
| Towing capacity | 3000 kg |
| Dimensions | 1580×980×1850 mm |
| Travel speed | 1.8 m/s |
| Turning diameter | 2530 mm |
| Gradeability | 3 % |

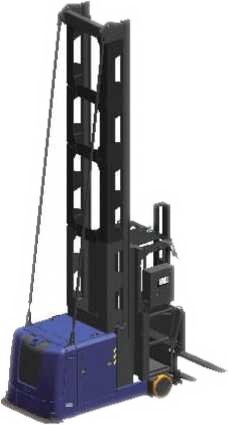

T series three-way forklift
Aisles from 1.5 m — 55 % narrower than standard. Racking up to 14.2 m raises storage capacity by 200 %. The forks rotate through 180° with no need to manoeuvre the truck body.
| Rated capacity | 1600 kg |
| Lift height | 11,200 ± 5 mm |
| Aisle width | from 1.5 m |
| Travel speed | 2.0 m/s |
| Turning diameter | 5376 mm |
Appearance and specifications are subject to change in line with the manufacturer's current technical documentation. Prices on request.
